Description

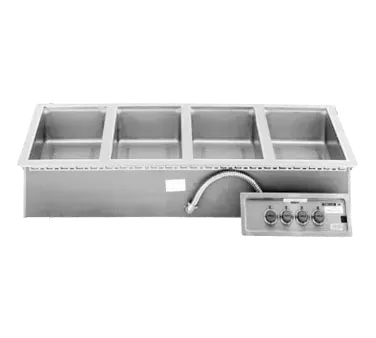

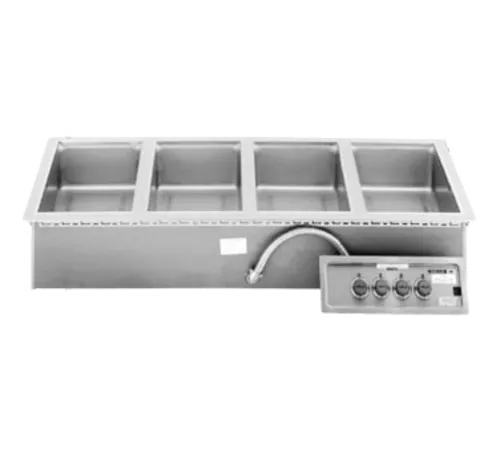

Wells MOD-400T heavy-duty, top-mount, drop-in, Modular food warmer is designed to hold heated foods at safe and fresh serving temperatures. Unit Accommodates 12” x 20” standard food pans or equivalent fractional inset pans and are designed for wet or dry operation. One-piece stainless steel top flange and heavy-gauge, deep-drawn stainless steel warming pans are standard features on all models. WellsLoks are standard for quick and easy installation. Sides, front, back, and bottom are fully insulated, Individual controls for each well, High-limits prevent overheating, and powerful tubular heating elements are located under the warming pans for quick, efficient, and even heating. Four pans, Thermostatic control, 208/240V

Specifications

Area (in)	12" x 20"
Wattage	1240.0
Voltage	208v
Cutout Height	22.5 Inch
Depth	23.62"
Amps	23.8 amps
Phase	3PH
Number of Wells	4
Capacity	4 full size pan
Width	56.5"
Cutout Depth	9.75 Inch
Height	9.75"
Material	aluminized steel, stainless steel
Design	built-in, drop-in
Safety and Compliance	cULus
Power Type	electric
Plug Type	Field Wired Per Local Code
Product Type	hot food well unit
Features	insulated
Drain Type	No Drain
Shape	rectangular
Temperature Control	thermostat controls, thermostatic controls
Installation Type	top mount
